UFSC
UFSC DESIGN Single stage, axially split casing, double-suction pumps.• Double entry radial impeller has hydraulic thrustcompensation.• Suction and discharge flanges are along the same line.• Upper body is lighter than the lower body and joins it in sucha way that it is easily assembled.• Double suction pumps have the advantage of low NPSH (netpositive suction […]
UFVMS-M
UFVMS-M DESIGN The UFVMS-M Pump is a vertical axis, radially split, ring section design multistage centrifugal pump of non-self priming type. Impellers are between bearings, single entry, closed type and dynamically balanced. Impeller diameter will be corrected for optimal adherence to the required duty point. For balancing the axial thrust, all impellers have back wear […]
UFVMS-S
UFHMS-S DESIGN UFVMS-S series consist of vertical, staged pumps. All parts which come into contact with water are made of stainless steel. Suction and discharge flanges are along the same axis. Simple body and perfect balance provides for low noise and vibration. Mechanical seal is completely leakage proof. Body, impeller and shaft are stainless steel. […]
UFHMS-V
UFHMS-V DESIGN · The UFHMS-V Pump is a vertical axis, radially split, ring section design multistage centrifugal pump of non-self priming type. · Impellers are between bearings, single entry, closed type and dynamically balanced. Impeller diameter will be corrected for optimal adherence to the required duty point. · The axial thrust is relieved by relieving […]
UFP SC UL
UFP SC UL DESIGN Single stage, horizontal, separable body, radial impeller,double suction pumps.• The back-to-back design of the double entry radial impellerseliminates all thrust.• The suction and discharge flanges are along the same axis.• Easy assembly feature.• Double suction pumps have the advantage of low NPSHfeatures.• The pump and electric motors are connected to the […]
UFP SC NFPA
UFP SC NFPA DESIGN Single stage, horizontal, separable body, radial impeller,double suction pumps.• The back-to-back design of the double entry radial impellerseliminates all thrust.• The suction and discharge flanges are along the same axis.• Easy assembly feature.• Double suction pumps have the advantage of low NPSHfeatures.• The pump and electric motors are connected to the […]
UFP ES UL
UFP ES UL DESIGN End-Suction Centrifugal Fire Pumps • UFP ES UL series UL Listed/FM Approved pumps are single-stage, non-self-suction, end-suction centrifugal pumps.• With 3 pumps as UFP ES UL 525, UFP ES UL 825 and UFP ES UL 1531, meets the flow range between 50 gpm and 1250 gpm.• Pump flanges are designed according […]
UFP ES NFPA
UFP ES NEPA DESIGN These are single stage, end suction centrifugal pumps.• The main pump dimensions are compatible with DiN 24256(ISO 2858).• Performances are compatible with NFPA standards.• The single entry, enclosed impeller is dynamically balancedagainst thrust (axial force) by means of balance holes and backwear rings. The pump and the motor are connected by […]

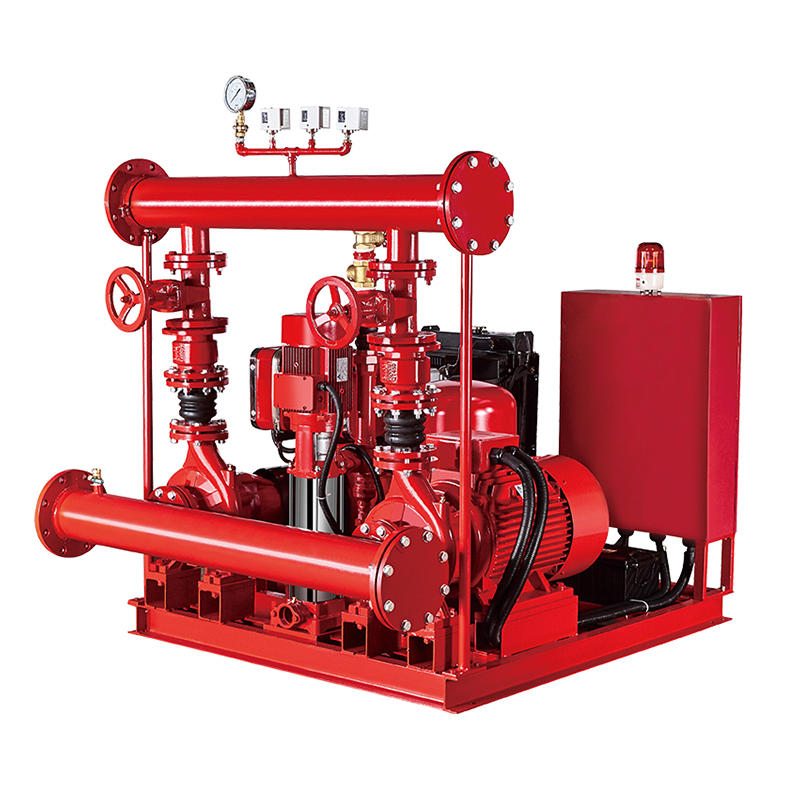

UFP ASS NFPA
UFP ASS NFPA DESIGN The main pump can be end suction pump, multistage pump, split case pump,or vertical turbine pump with stainless steel, cast iron and bronze material in standard configurations. Every package is mounted on a steel fabricated base with motor, engine and pump coupled and wired to the controller. The automatic air relief […]
UFES CC
UFES CC End Suction Monoblock Centrifugal Pumps UFES CC Series are volute, single stage, end suction mono-block type centrifugal pumps. It is produced with closed impellers and mechanical seals as standard. Main dimensions and nominal flow rates are in accordance with the values recommended in DIN 24255 and EN 733. Flanges are in PN 16 […]
