UFES SSP
UFES SSP End-Suction Pumps Stainless Steel Sheet The pump parts are made of high strength, high-quality,corrosion-resistant stainless steel.• Horizontal or vertical mounting options are available.• Thanks to back pull out, easy access to impeller and seal isprovided without removing suction and discharge line.• Alignment errors are reduced and the smooth installationdue to centered discharge outlet […]
UFES CP
UFES CP Heavy Duty Chemical Process Pumps . Single stage, end suction, volute casing ISO EN 2858 DIN24256 standard pumps. Centerline mounted, single stagevolute casing pumps with mechanical seals and heating jacket(Centerline mounted model).• Single suction, radial and mixed flow closed type impeller isequipped with back wear rings to balance axial loads. Impelleris also balanced […]
UFES OP
UFES OP Thermal Oil Pumps Single stage, end suction centrifugal pumps.• Main pump dimensions are compatible with DIN 24256 (ISO2858).• Single entry, closed type impeller is used.• Radial vanes are used behind the impellers to lower thepressure and to balance the thrust (axial force).• The pump and the motor are connected by means of a […]
KYP
DESIGN
Single stage, end suction centrifugal pumps.
• Main pump dimensions are compatible with DIN 24256 (ISO
2858).
• Single entry, closed type impeller is used.
• Radial vanes are used behind the impellers to lower the
pressure and to balance the thrust (axial force).
• The pump and the motor are connected by means of a flexible
coupling on a common base plate.
• Maintenance of the pump is very easy. The shaft and other
rotating parts can be removed without dismantling the suction
and the discharge system.
• Since the pump uses many standard parts, spare parts are
readily available.
• These pumps are designed so that there is no need for
external cooling. Due to natural convection the pump
temperature decreases towards the roller bearing
UFES Mdrive Series
DESIGN
NM m-Drive series pumps are single stage, end suction,
seal-less volute type pumps with magnetic coupling.
• Single entry, closed impeller is hydraulically thrust
compensated and dynamically balanced.
• Main dimensions according to EN 733.
• Pump and motor are connected to each other on a base plate
by using magnetic coupling.
• Pump can be dismantled without removing pump casing
thus maintenance and assembly operations can be easily
performed.
• Silicium carbide plain bearings which are lubricated by
process fluid are used in NM m-Drive series pump.

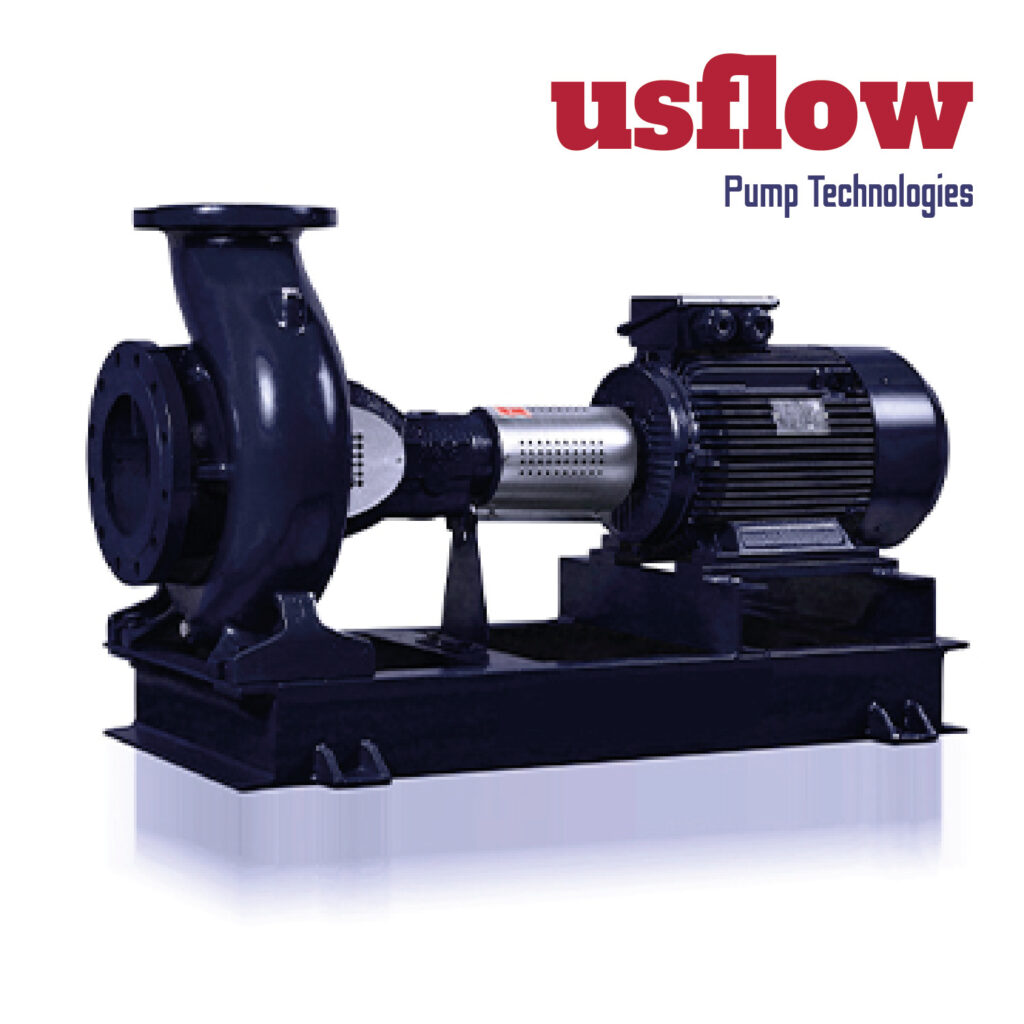

UFES
Single Stage, End Suction, Centrifugal Volute Pumps
• Main dimensions, compatible w ith EN 733 (DIN 24255) norm.
A total of 48 designed pumps available in the series.
• Single suction with closed impeller, and thrust balanced by
means of counter-balancing holes and back wear rings, thus
acquiring a dynamic balance.
• The pump and the motor have a standard connection to the
common base plate with a flexible coupling. Maintenance and
repair procedures are easily carried out since the pump fixtures
can be removed with the volute body remaining intact.
• Use of extended coupling also enables the removal of the
pump fixtures without moving the motor or the volute body.
• The series has been designed so that parts are easily replaced
and standardized. The entire series is made up of only 6 bearings and 10 shaft types, thus simplifying spare parts procurement
