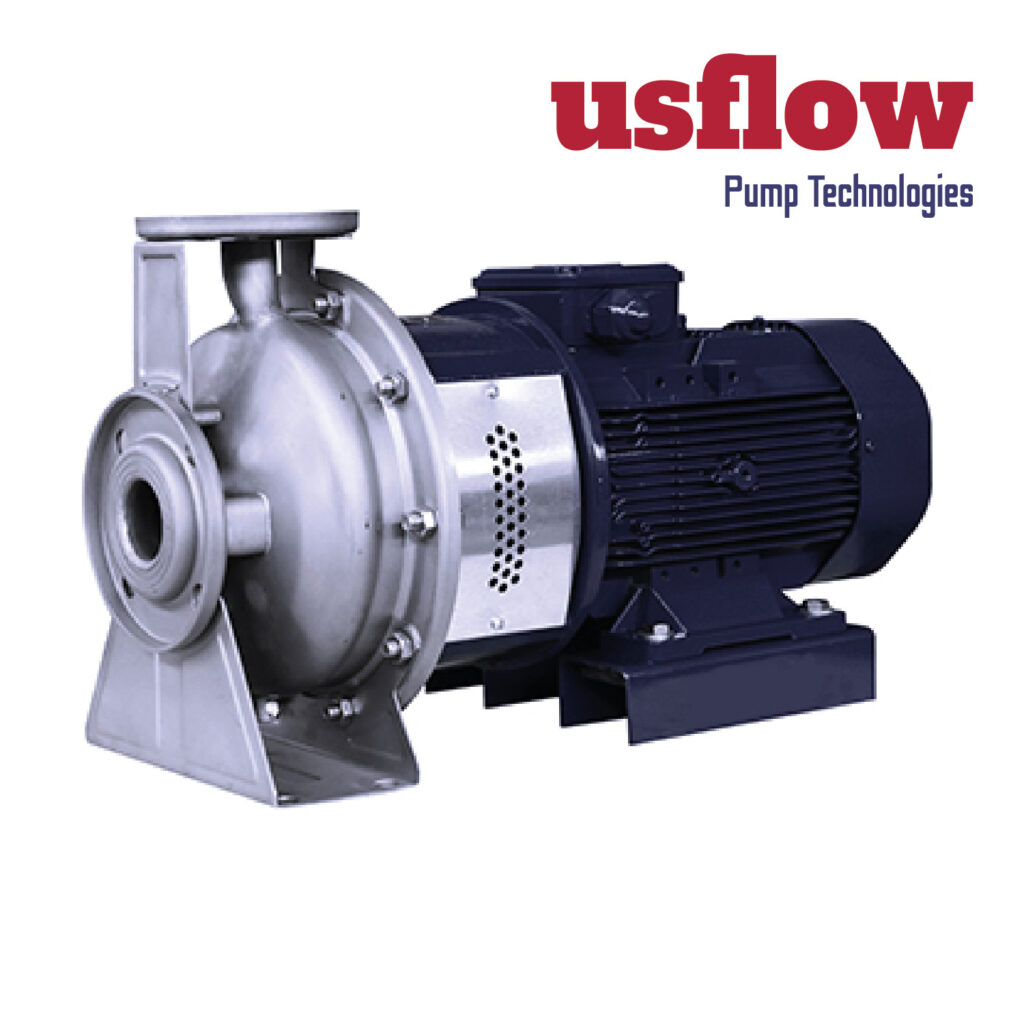

UFES SSP
End-Suction Pumps Stainless Steel Sheet
- The pump parts are made of high strength, high-quality,
corrosion-resistant stainless steel.
• Horizontal or vertical mounting options are available.
• Thanks to back pull out, easy access to impeller and seal is
provided without removing suction and discharge line.
• Alignment errors are reduced and the smooth installation
due to centered discharge outlet at the upper side and
support legs under the casing.
• High operating efficiency – low operating costs
• The noise level has been reduced because of lightweight and
compact design.
• Using high quality bushings and o-rings, ensuring compliance
standard pumping process and high-temperature and
chemical
environments.
• When using only mechanical seal at monobloc model,
mechanical seal or soft packing is used at coupling
connection model.
TECHNICAL SPECIFICATIONS
Suction Flange | DN 40 – DN 100 |
(TS EN 1092 – 2) | |
Discharge Flange | DN 32 – DN 80 |
(TS EN 1092 – 2) | |
Working Pressure | 10 Bar |
Ambient Temperature | Up to + 400 C |
Fluid Temperature | -200 C / +1000 C |
Flow Range | 3 – 200 m3/h |
Head Range | 10 – 70 m |
SCOPE OF APPLICATION
FIELDS OF APPLICATIONS
stainless centrifugal pumps having a wide field of
application. This serie is used in the transport of water and
industrial fluids and can be worked on different temperature,
flow and pressure range. General fields of applications
are as follows.
• Water Supply: Water Filtration and transportation,
Pressurized the main channel
• Industrial pressurization: wetting and Cleaning System
• Transportation of industrial liquid: Textile Dye house,
Pharmaceutical, Food, Chemical, Water Supply boiler,
condenser, cooling and air conditioning systems,
transportation of acid and alkali-based liquid
• Water Treatment, Water Filtration (reverse osmosis) Systems,
Swimming Pools
